| Name | Benchtop Low Speed Centrifuge, CFG-T5LA |
| Code | scitek-0481 |
| Type | Standard |
| Brand | Scitek |
| Category | Centrifuges |
| subcategory | Low Speed Centrifuges |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Max Speed : 5000rpm
Max RCF : 4730×g
Max Volume : 4×300ml Swing Rotor
External Size (W×D×H)(mm) : 610×450×355
This benchtop low speed centrifuge has a compact design, takes up little space, is easy to operate and is suitable for a variety of experimental environments.
This benchtop low speed is mainly used in biology, medicine, chemistry, physics and other laboratories. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay and other items.
Benchtop Low Speed Centrifuge Specifications:
| Model | CFG-T5LA |
|---|---|
| Max Speed | 5000rpm |
| Max RCF | 4730×g |
| Max Volume | 4×300ml Swing Rotor |
| Speed Accuracy | ±10rpm |
| Timer | 1s～99min |
| Noise | ≤62dBA |
| Power Supply | AC110/220V, 50/60Hz |
| External Size (W×D×H)(mm) | 610×450×355 |
| Shipping Size (W×D×H)(mm) | 820×520×540 |
| N.W/G.W | 52kg/70kg |
Rotors for CFG-T5LA:
| Rotor No. | Rotor Type | Max Volume | Max Speed | Max RCF | Notes |
|---|---|---|---|---|---|
| No 05619 | Swing Rotor | 4×14×5/7ml | 4000rpm | 3180×g | For 2-7ml vacuum tube |
| Swing Rotor | 4×300ml(round) | 4000rpm | 3180×g | Optional biosafety cover | |
| Adapter | 4×10×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×9×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×7×10/15ml | For 10/15ml tube | |||
| Adapter | 4×2×50ml | For 50ml tube | |||
| No 05620 | Swing Rotor | 4×300ml(rectangle) | 4000rpm | 3150×g | Optional biosafety cover |
| Adapter | 4×16×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×12×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×9×10/15ml | For 10/15ml tube | |||
| Adapter | 4×4×50ml | For 50ml tube | |||
| No 05623 | Swing Rotor | 4×24×5ml vacuum tube | 4000rpm | 2840×g | For 2ml vacuum tube |
| No 05622 | 4×24×7ml vacuum tube | 3140×g | For 5ml vacuum tube | ||
| No 05621 | 4×18×10ml vacuum tube | 3140×g | For 10ml vacuum tube | ||
| No 05211 | Swing Rotor | 4×250ml(falcon) | 4000rpm | 3260×g | 250ml falcon |
| Adapter | 4×250ml Adapter | ||||
| No 05214 | Swing Rotor | 2×4×96 well | 4000rpm | 2910×g | Optional |
| No 05216 | 2×3×48 well | 2300×g | Optional | ||
| No 05629 | Swing Rotor | 4×1×50ml | 5000rpm | 4730×g | Optional |
| No 05630 | 4×1×100ml | 4730×g | Optional | ||
| No 05635 | 4×2×100ml | 4000rpm | 3020×g | Optional | |
| No 05634 | 4×2×50ml | 3200×g | Optional | ||
| No 05631 | 4×8×15ml | 3200×g | Optional | ||
| No 05639 | 4×16×5ml vacuum tube | 2530×g | For 2ml vacuum tube | ||
| No 05638 | 4×16×7ml vacuum tube | 2890×g | For 5ml vacuum tube | ||
| No 05640 | 4×12×10ml vacuum tube | 2880×g | For 10ml vacuum tube | ||
| No 05182 | Angle Rotor | 12×Gabor milk fat meter | 2000rpm | 815×g | For Gabor milk fat meter |
| No 05140 | Angle Rotor | 24×15ml | 5000rpm | 3500×g | Optional |
| No 05141 | Angle Rotor | 30×15ml | 5000rpm | 3830×g | Optional |
| No 05144 | Angle Rotor | 12×50ml | 5000rpm | 3860×g | Optional |
| No 05145 | Angle Rotor | 24×50ml | 4000rpm | 2970×g | Optional |
| No 05147 | Angle Rotor | 6×100ml | 5000rpm | 3130×g | Optional |
| No 05148 | Angle Rotor | 12×100ml | 4000rpm | 2970×g | Optional |

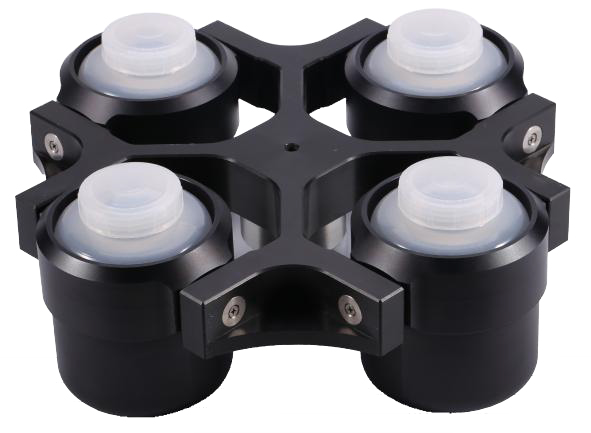

4×300ml Swing Rotor
Benchtop Low Speed Centrifuge Feature:
Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
Induction automatic electric suction door lock, with emergency door opening device; self-inspection and protection of door lock, over-speed, unbalance, etc., safe and reliable.
Using a microcomputer processor for precise control, eye-catching red digital LED display, key programming, and parameter modification during operation.
Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360 degrees, and the loading and unloading of the rotating head is non directional, fast and simple.
Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
The whole machine is all-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
The benchtop low speed centrifuge door cover is equipped with a hydraulic rod to reduce operating load.
