| Name | Bante810 Benchtop Dissolved Oxygen Meter |
| Code | bante-0107 |
| Type | Standard |
| Brand | Bante |
| Category | Dissolved Oxygen Meters |
| subcategory | Benchtop Meters |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

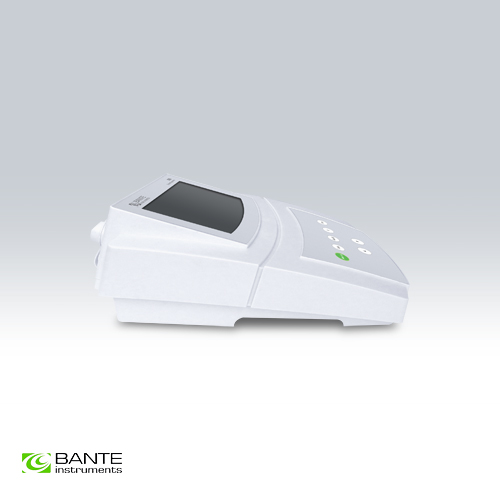

Bante810 Benchtop Dissolved Oxygen Meter
Economical benchtop dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 6 options, the meter is suitable for educational applications, accuracy: 0.5 mg/L.
Features:
• Economical benchtop dissolved oxygen meter is equipped with a backlit LCD display.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate the measurement errors.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-read function senses and locks the measurement endpoint.
• Setup menu allows setting the number of calibration points, concentration unit, temperature
unit, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
Applications:
• Routine measurements
• Education and other industrial applications
Specification
Model | Bante810 | |
Dissolved Oxygen | ||
Range | 0.0 to 20.0 mg/L | |
Resolution | 0.1 mg/L | |
Accuracy | ±0.5 mg/L | |
% Saturation of Oxygen | ||
Range | 0.0 to 200.0% | |
Resolution | 0.1% | |
Accuracy | ±2.0% | |
Other Specifications | ||
Calibration | 1 or 2 points | |
Temperature Compensation | 0 to 40°C / 32 to104°F, automatic | |
Pressure Correction | 450 to 850 mmHg, manual | |
Salinity Correction | 0 to 35 g/L, manual | |
Temperature Correction | Reading ±10°C/°F | |
Hold Function | Manual / Auto-read measurement endpoint | |
Connector | 6-pin mini-DIN | |
Display | Custom LCD (135 × 75 mm) | |
Power Supply | 9V DC power adapter | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 210 × 205 × 75 mm | |
Weight | 1.5 kg |

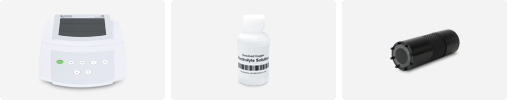

Ordering Info
Ordering Code | Meter Includes |
Bante810 | DO100 dissolved oxygen electrode |
DO electrolyte solution | |
DO membrane cap | |
9V DC power adapter |
Optional Accessories
| Items | Description |
| DO100 Dissolved Oxygen Electrode | For measuring the DO and % saturation of oxygen |
| DO Electrolyte Solution | For filling the dissolved oxygen electrode |
| DO Membrane Cap | For polarographic dissolved oxygen electrode |
Packaging
Ordering Code | Dimensions and Weights |
Bante810 | 30 × 25 × 20 cm, 1.7 kg |
