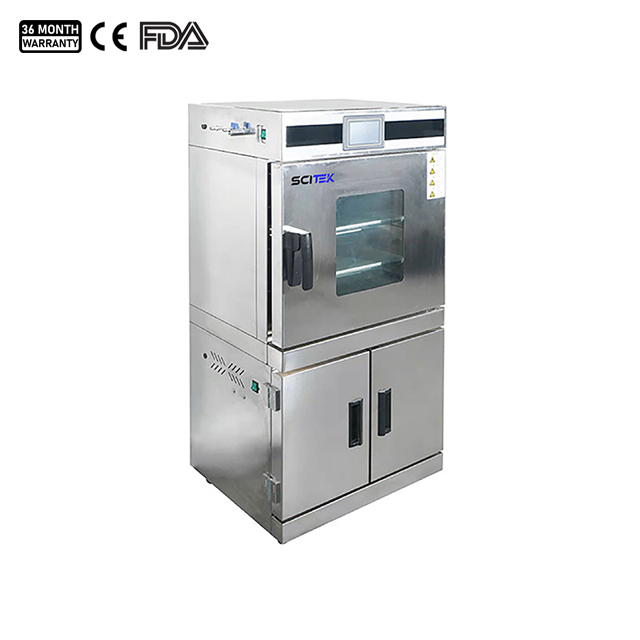

Automatic Vertical Vacuum Oven (Precision Model) (scitek-0031) Products
| Name | Automatic Vertical Vacuum Oven (Precision Model) |
| Code | scitek-0031 |
| Type | Standard |
| Brand | Scitek |
| Category | Ovens and Furnaces |
| subcategory | Vacuum Oven |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : VO-55P; VO-55PI; VO-90P; VO-90PI
Capacity : 52L / 52L / 91L / 91L
Heating Mode : Shelf direct heating
Temperature Range: RT+10~250℃
Timer : 0~9999min
The automatic vertical vacuum drying oven offers reliable short drying times and particularly fast heating.
Capacity : 52L / 52L / 91L / 91L
Heating Mode : Shelf direct heating
Temperature Range: RT+10~250℃
Timer : 0~9999min
The automatic vertical vacuum drying oven offers reliable short drying times and particularly fast heating.
Product Details
Vacuum Oven Specifications:
| Model | VO-55P | VO-55PI | VO-90P | VO-90PI | |
|---|---|---|---|---|---|
| Capacity (L) | 52 | 91 | |||
| Heating Mode | Shelf direct heating | ||||
| Size(WxDxH) | Internal (mm) | 415x370x340 | 415x370x341 | 450x450x450 | 450x450x451 |
| External (mm) | 635x565x796 | 635x565x1296 | 670x645x906 | 670x645x1406 | |
| Temperature | Range (℃) | RT+10~250 | |||
| Fluctuation (℃) | ±1 | ||||
| Resolution (℃) | 0.1 | ||||
| Sensor | PT100 | ||||
| Controller | Multi-stage PID | ||||
| Vacuum Degree Range | <133Pa | ||||
| Vacuum Nozzle Diameter (mm) | Φ10 | ||||
| Display | 7.0 inches LCD color touch screen | ||||
| Timer | 0~9999min / 0~9999h, convertible | ||||
| Material | Internal | SUS304 mirror stainless steel | |||
| External | SUS304 embossed stainless steel | ||||
| Shelves (Standard) | 2 | ||||
| Safety Device | Over temperaure visible & audible alarm,sensor fault alarm, vacuum overvalue alarm | ||||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |||
| Consumption (W) | 1200 | 1600 | 1600 | 2000 | |
| N.W./G.W. (kg) | 67/92 | 87/112 | 82/105 | 102/125 | |
| Shipping Size (WxDxH) (mm) | 804x705x957 | 804x705x1457 | 840x785x1062 | 840x785x1562 | |
| Optional | Spare shelf (independent temperature control), RS485 transfer to USB communication interface, Printer, Control module of WiFi | ||||
Vacuum Oven Features:
Programmable or fixed value operation mode with a 5.0-inch touch screen PID temperature controller for accurate temperature control.
Real-time temperature curve record, convenient for users to see the heating process.
Program mode enables multi-stage programming operation for temperature control and vacuum degree, improving experimental efficiency.
Automatic vacuum degree control system, set the vacuum degree, automatically reach the set vacuum degree.
VO-55PI, VO-90PI equipped with vacuum pump, air pipeline with air filter device.
