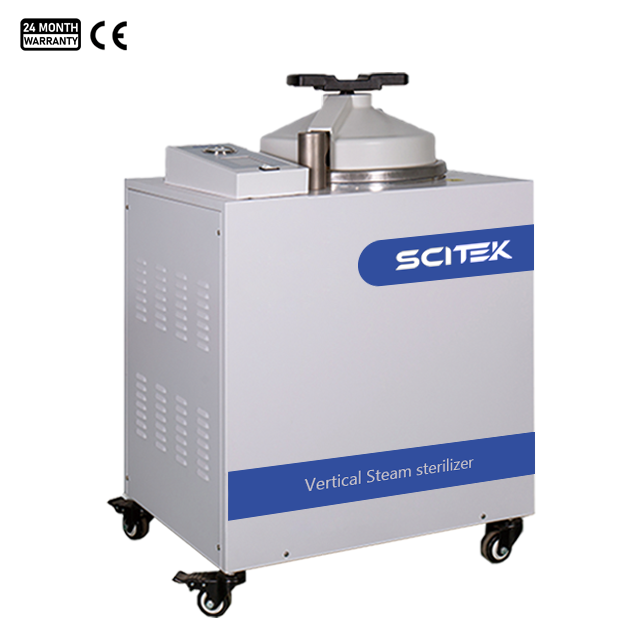

Automatic Vertical Autoclave 50/80/100/120/150L (scitek-0105) Products
Name Automatic Vertical Autoclave 50/80/100/120/150L
Code scitek-0105
Type Standard
Brand Scitek
Category Autoclaves & Sterilizers
subcategory Vertical Autoclave
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Model : ST-V50A; ST-V80A; ST-V100A; ST-V120A; ST-V150A

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min

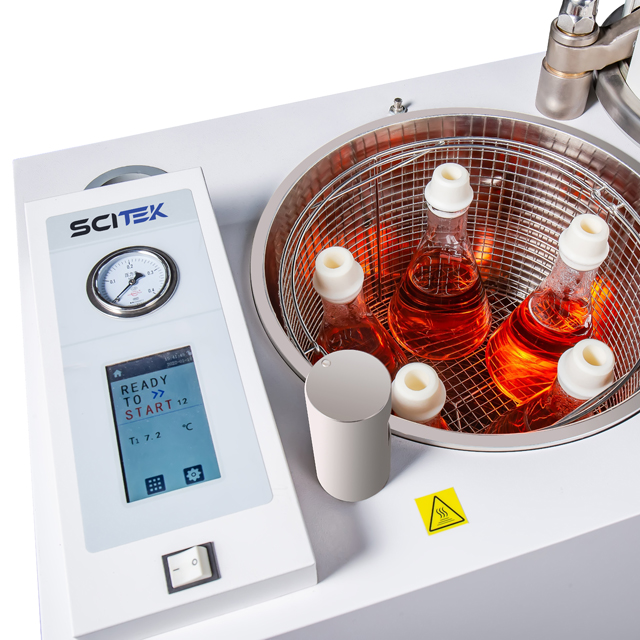

The automatic vertical autoclave with LCD touch screen and water tank has the advantage of a continuous water supply and improved sterilisation results, making it an efficient sterilisation option for laboratories.
Product Details

Automatic Vertical Autoclave Features:

  1. Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.

  2. Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.

  3. Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.

  4. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

  5. Automatic operation of sterilization with PID microprocessor control and LCD display.

  6. Positive pulsing function removes the air efficiently.

  7. Liquid program with automatic pressure control prevents boil over of liquids and explosions of bottles or bags.

  8. With Power-off memory function.

  9. Internal water tank with steam-water internal circulation.

  10. Optional printer, real-time record sterilization process,error and alarm information.

Automatic Vertical Autoclave Specifications:

ModelST-V50AST-V80AST-V100AST-V120AST-V150A
Capacity50L80L100L120L150L
External Size (WxDxH)(mm)476x616x990546x688x1030566x708x1295620x760x1190680x820x1180
Chamber Size (ØxH)(mm)Ø316x667Ø386x695Ø400x800Ø450x760Ø500x780
Chamber MaterialSUS304
Sterilization Temperature105~136 ℃
Designed Temperature150℃
Max.Working Temperature136 ℃
Dissolution Temperature40~100℃
Warming Temperature40~60℃
Temp.Accuracy0.1℃
Designed Pressure0.3Mpa
Max.Sterilization Pressure0.23Mpa
Sterilization Time Range0~99min
DisplayLCD touch screen
Drying FunctionYES
Drying Time15min
Sterilization Program●Dressings/Fabric program
●Tools program
●Rubber program
●Culture medium sterilization warming program
●Culture medium dissolution warming program
●Liquids in closed containers (glass bottle, plastic bottle and bag) program
●Waste program
Water Injection MethodBuilt-in water tank
Power Consumption3KW4.5KW5.4KW5.4KW9.3KW
Power Supply220V 50Hz220V 50Hz220V 50Hz380V 50Hz380V 50Hz
Standard SS Basket2pcs2pcs2pcs2pcs2pcs
Optional AccessoriesPrinter, USB port
Net Weight68kg92kg100kg175kg195kg
Gross Weight103kg127kg140kg215kg235kg
Shipping Size (WxDxH)(mm)730x820x1250800x880x1300800x880x1480950x1050x1280950x1050x1440
