| Name | Automatic Gel Imaging and Analysis System |
| Code | scitek-0859 |
| Type | Standard |
| Brand | Scitek |
| Category | Electrophoresis |
| subcategory | Gel Imaging System |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Pixel : 2592x1944(5.03MP)
Exposure Time : 1ms-3000ms
QE Value : High QE: ＞65%
Binning : 1x1
Bit Depth : 16bit (0-65535)
Sizes(W×D×H) : 375x360x605mm / 405x380x695mm
Experience crystal-clear gel images with this automatic gel imaging and analysis system featuring high-resolution imaging technology that ensures every band and detail is captured with the utmost clarity.
Automatic Gel Imaging and Analysis System Specifications:

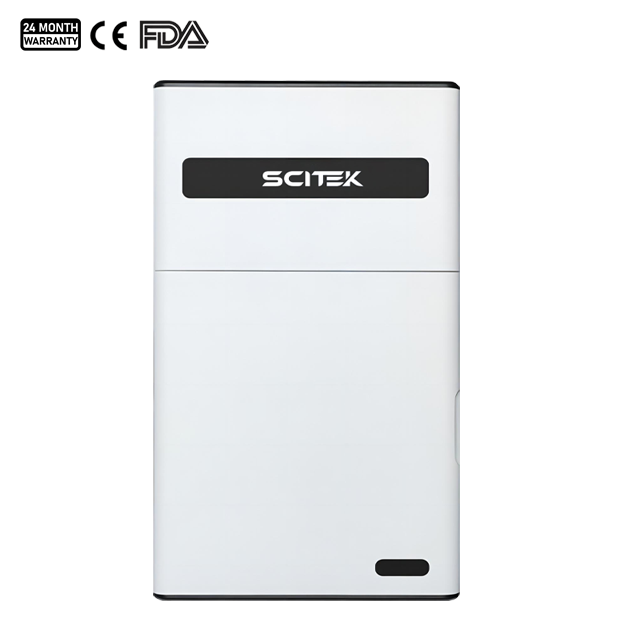

| Model | AG-I100 | AG-I1000 |
|---|---|---|
| Pixel | 2592x1944(5.03MP) | 2592x1944(5.03MP) |
| Exposure Time | 1ms-3000ms | 1ms-3000ms |
| QE Value | High QE: ＞65% | High QE: ＞65% |
| Binning | 1x1 | 1x1 |
| Bit Depth | 16bit (0-65535) | 16bit (0-65535) |
| OD | ≥4.8OD | ≥4.8OD |
| Lens | Motorized 8-48mm, F1.2 | Motorized 8-48mm, F1.2 |
| Trans-UV | 302nm | 302nm |
| Epi-White | LED | LED |
| Trans White | UV to white sample plate | UV to white sample plate |
| Epi-UV | 254nm, 302nm, 365nm for option | 254nm, 302nm, 365nm for option |
| Filters | 590nm, others for option | 590nm, others for option |
| UV Area | 210x210mm | 210x210mm |
| Timing off | 1~60mins | 1~60mins |
| Sizes (W×D×H)(mm) | 375x360x605 | 405x380x695 |
| Shipping Size (W×D×H)(mm) | 475x460x725 | 480x480x730 |
| N.W./G.W. (kg) | 28/31 | 33/36 |
Gel imaging system is designed for nucleic acid testing using various fluorescent dyes like EB, SYBR Gold, SYBR Green, and more.
Automatic Gel Imaging and Analysis System Features:
User-Friendly Design: The automatic gel Imaging and analysis system is fully automated with an intuitive interface, including a shooting button and time control for easy operation, eliminating the need for manual adjustments.
High-Resolution CCD Camera: Equipped with a high-resolution CCD camera with excellent sensitivity and automatic focus. A specialized filter for nucleic acid dye and a high-performance 6x lens ensure accurate imaging.
Specialized Overlay Glue Cutting Filter: This filter offers advantages over traditional filters. It's easy to use, prevents UV and blue light damage, and functions well under strong light conditions. No dark room is needed. The white light sample plate is perfect for SDS-PAGE gel samples imaging.
Packing & Delivery
Gel imaging system adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
Pre-sale services
●24-hour quick response to customer inquiries.
●Recommend models that meet customer requirements.
●Provide competitive prices and detailed product parameters and related information.
●Provide product customization services.
●Sample testing support,Production View Service.
After-sales service
●Product installation and use training.
●Provide overseas maintenance services in response to customers technical problems.
●Three-year warranty on air protection products,Life time maintenance service.
●Online and offline technical personnel training services.
