AMT599 Colorimeter

Product Details

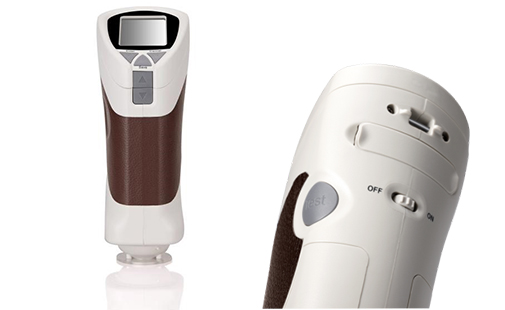

AMT599 Colorimeter

Introduction:

Device sensor from Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability. Display accuracy is 0.01, repeated test accuracy △E deviation value is below 0.1.

Multiple color space display color values : L*a*b、L*c*h、Yxy:

Being the most commonly used testing device, our colorimeter with built-in color display indicators transformation program, which makes our device could be used for color testing in many different industries. And it do not need convert the measurement data by manual so it greatly improve the work efficiency.

Free Color Management Software:

Real-time display of qualified or not, generate testing report, save the color data, suitable for the enterprise to evaluate color and control the color data.

Technical Data:

1. Illumination system: 8/d（8°/diffused illumination）SCI

2. Testing Port Diameter: About 8mm

3. Measuring conditions: CIE 10° standard observer; CIE D65 light source

4. Measuring range: L*：1~100

5. Repeatability: Standard deviation within△E*ab*，below 0.1(testing condition: measure the white calibration board for average)

6. Storage: 10 sets of standard samples; up to 100 under each standard sample

7. Measuring time: About 0.5 second

8. Measuring light source: LED

9. languages: Chinese, English

10. Power: Four AA1.5V Alkaline battery or nickel-metal hydride batterys; or DC5V adapter

11. Port: USB2.0 printer
