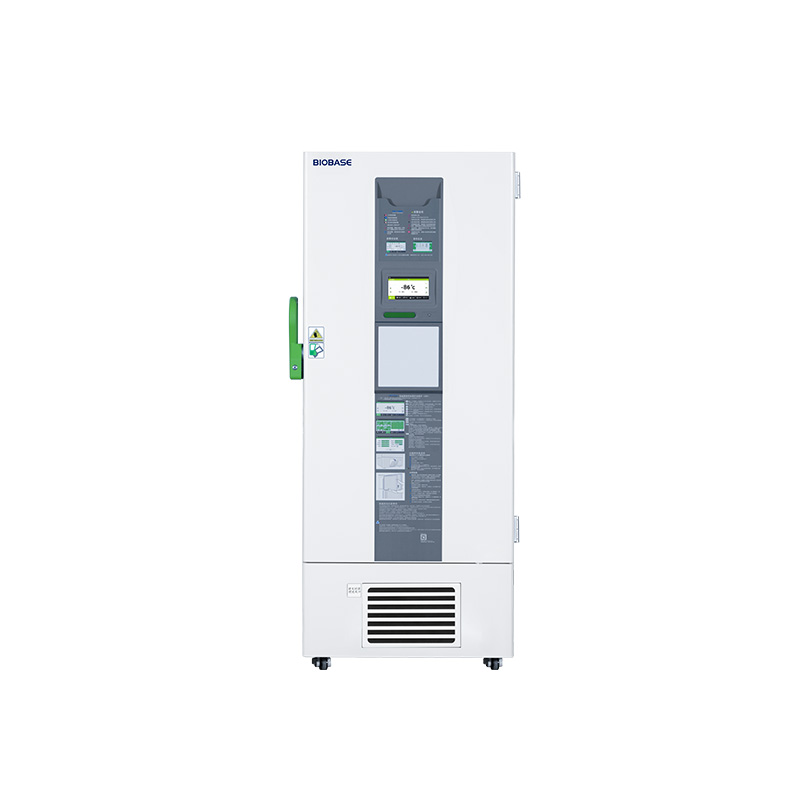

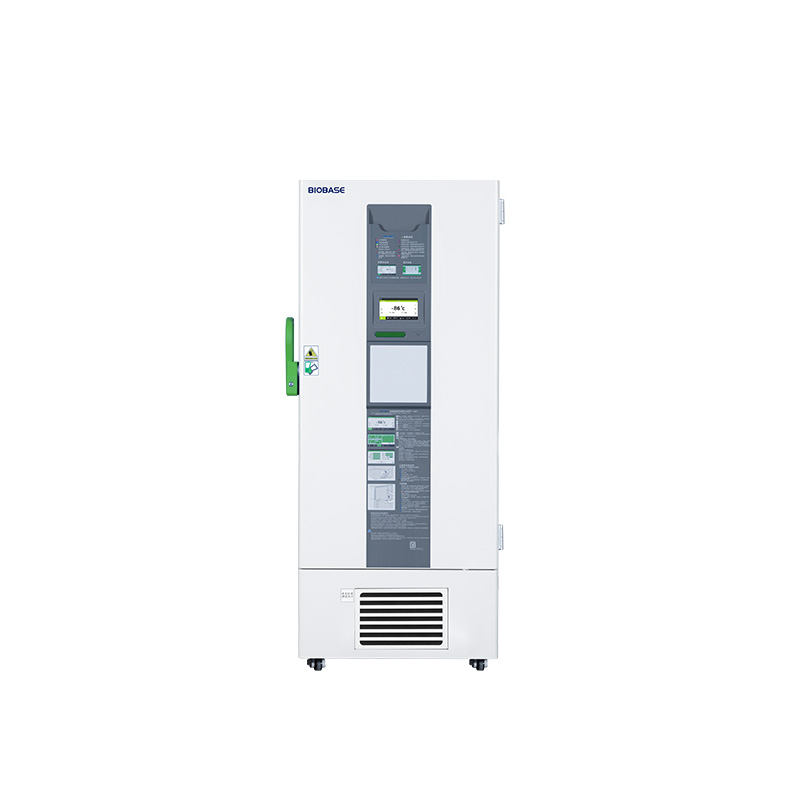

| Name | -86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D |
| Code | biobase-0144 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory And Medical Cryogenic Equipments |
| subcategory | -86℃ Ultra-low Temperature Freezer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Technical Parameters
Model | BDF-86V408D | BDF-86V588D | BDF-86V838D | |
External Size(W*D*H)mm | 891*992*1945.5 | 891*1155*1994.5 | 1179*1135*1994.5 | |
Internal Size(W*D*H)mm | 606*575*1180 | 606*738*1310 | 894*718*1310 | |
Capacity | 408L | 588L | 838L | |
Type | Vertical | |||
Temp. Range | -40℃～-86℃ | |||
Temp. Accuracy | 0.1℃ | |||
Control System | ||||
Alarm | High and low temperature alarm, sensor fault alarm, condenser fouling alarm, ambient temperature alarm, abnormal voltage alarm, power off alarm, door ajar alarm, low battery alarm, with remote alarm interface, all alarm information and history can be queried on the LCD screen | |||
Alarm Method | Sound beeps and lights flash, remote alarm, and SMS alarm is optional | |||
Refrigeration System | Two independent refrigeration systems | |||
Direct refrigeration | ||||
Refrigerant | Non-azeotropic mixed refrigerant R4001 | |||
Compressor | 2 pcs | |||
Construction | Foam Layer Thickness | 100mm | ||
Internal Material | 304 stainless steel | |||
External Material | Sprayed steel plate | |||
Door | 1 pc sprayed steel plate outer door, 2 pcs 304 stainless steel inner door | |||
Caster | 4 casters | |||
Shelf | 3 pcs, 304 stainless steel | |||
Temp. Test Port | 1 pc, dia. 25mm | |||
Consumption | 1350W | 1500W | 1700W | |
Power Supply | 220V/50Hz | |||
Package Size(W*D*H)mm | 970*1138*2185 | 954*955*2094 | 1262*1098*2185 | |
Gross Weight | 332kg | 310kg | 424kg | |
