Digital Radius Gauge

Order Number:

201-0056: Radius + Indicator

201-0057: Radius + Diameter + Indicator

Features:

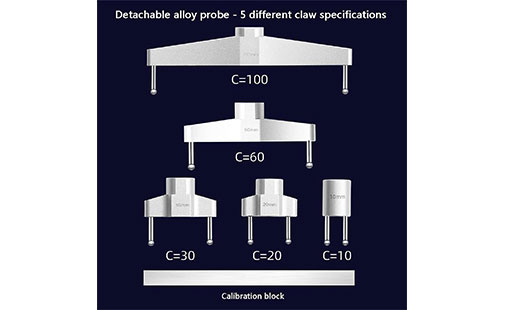

1. Come with 5 changeable measuring claws (10mm/20mm/30mm/60mm/100mm)

2. Multi-indicators have five different length measuring claws, for choose corresponding measuring claws, while measuring arc face.

3. Multi-functions:

   1) Application as indicators

   2) Outside measurement

   3) Inside measurement

   4) Depth measurement

   5) Step measurement

Specifications:

1. Range: 5~700mm

2. Resolution: ΔR≤0.01*R/S

3. Max tolerance: 20μm

4. Inside arc the best measuring range:

   1) Claw=10:   R= 5~13mm

   2) Claw=20:   R=11~30mm

   3) Claw=30:   R=22~100mm

   4) Claw=60:   R=94~260mm

   5) Claw=100: R=255~700mm

5. Outside arc the best measuring range:

   1) Claw=10:   R=6.5~15mm

   2) Claw=20:   R=14~ 30mm

   3) Claw=30:   R=27~100mm

   4) Claw=60:   R=94~260mm

   5) Claw=100: R=255~700mm
